Buick Enclave: Description and Operation

AIR DELIVERY DESCRIPTION AND OPERATION

The air delivery description and operation is divided into 7 areas:

HVAC Control Components

HVAC Control Module

The HVAC control module is a GMLAN device that interfaces between the Operator and the HVAC system to maintain air temperature and distribution settings. The battery positive voltage circuit provides power that the control module uses for keep alive memory (KAM). If the battery positive voltage circuit loses power, all HVAC DTCs and settings will be erased from KAM. The body control module (BCM), which is the vehicle mode master, provides a device on signal. The control module supports the following features:

Buick Enclave. HVAC - Automatic

Auxiliary HVAC Control Module (without RSA)

The Auxiliary HVAC Control Module uses a set of three potentiometers to control rear fan speed, temperature and mode settings. The Auxiliary HVAC Control module has inputs for 5V and low Reference that is used by all three potentiometers. There are three signal circuits between each of the potentiometers and the HVAC Control Module.

Auxiliary HVAC Control Module (with RSA)

Auxiliary HVAC Control functions are integrated into the Rear Seat Entertainment Module. The Rear Seat Entertainment Module communicates Rear HVAC settings over serial data.

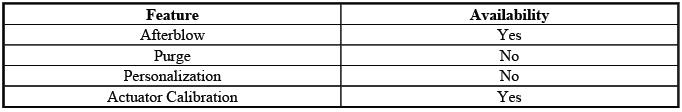

Auxiliary HVAC Control Functions

All Auxiliary functions and DTCs are handled by the HVAC control module. There are two ways the rear functions can be controlled.

Control from the HVAC control module: If the AUX button on the HVAC control module is pressed, the rear HVAC system will be enabled. The settings for the rear will mimic the Driver settings on the HVAC Control Module.

Control from the auxiliary HVAC control module: If at any time any of the three Auxiliary controls are adjusted, control of the rear HVAC System will transfer to the Auxiliary controls. If the Aux button is not currently enabled, adjusting the Auxiliary controls will enable it, even if the front system is Off.

Auxiliary Mode Actuator

The auxiliary Mode actuator is a 5-wire bi-directional electric motor that incorporates a feedback potentiometer.

Low reference, 5-volt reference, position signal and 2 control circuits enable the actuator to operate. The control circuits use either a 0 or 12-volt value to coordinate the actuator movement. When the actuator is at rest, both control circuits have a value of 0 volts. In order to move the actuator, the HVAC control module grounds one of the control circuits while providing the other with 12 volts. The HVAC control module reverses the polarity of the control circuits to move the actuator in the opposite direction. When the actuator shaft rotates, the potentiometers adjustable contact changes the door position signal between 0-5 volts. The HVAC control module uses a range of 0-255 counts to index the actuator position. The door position signal voltage is converted to a 0-255 count range. When the module sets a commanded or targeted value, one of the control circuits is grounded. As the actuator shaft rotates the changing position signal is sent to the module. Once the position signal and the commanded value are the same, the module removes power and ground from the control circuits.

The auxiliary HVAC control module uses a range of 0-255 counts to index the actuator position. The door position signal voltage is converted to a 0-255 count range. When the module sets a commanded or targeted, value, the control signal is changed to either 0 or 5 volts depending upon the direction that the actuator needs to rotate to reach the commanded value. As the actuator shaft rotates the changing position signal is sent to the module.

Once the position signal and the commanded value are the same, the module changes the control signal to 2.5 volts.

Blower Motor Control Processor

The blower motor control processor controls the speed of the blower motor by increasing or decreasing the voltage drop on the ground side of the blower motor. The HVAC control module provides a low side pulse width modulated signal to the blower motor control processor over the blower motor speed control circuit. As the requested blower speed increases, the HVAC control module increases the amount of time that the speed signal is modulated to ground. As the requested blower speed decreases, the HVAC control module decreases the amount of time that the signal is modulated to ground.

Auxiliary Blower Motor Control Processor

The auxiliary blower motor control processor controls the speed of the blower motor by increasing or decreasing the voltage drop on the ground side of the auxiliary blower motor. The auxiliary HVAC control module provides a low side pulse width modulated signal to the auxiliary blower motor control processor over the auxiliary blower motor speed control circuit. As the requested blower speed increases, the auxiliary HVAC control module increases the amount of time that the speed signal is modulated to ground. As the requested blower speed decreases, the auxiliary HVAC control module decreases the amount of time that the signal is modulated to ground.

Air Speed - Front Control

The blower control switch is integrated into the HVAC control module. The 2 rocker type switches provide the vehicle operator the ability to select several blower speeds. The HVAC control module uses a bar graph type display to indicate the selected blower speed. The blower motor control processor supplies a 5-volt reference to the HVAC control module on the blower motor speed control circuit. The HVAC control module pulls the 5 volts reference low towards ground to provide a blower motor speed signal. As the voltage decreases the blower speed increases. Power and ground are provided to the blower motor control processor through the battery positive voltage and ground circuits. When the HVAC control module is operating in AUTO mode, the system automatically controls the blower speed. If an OnStar call is initiated while the blower is in the high speed position the blower speed will be lowered to reduce background noise.

Air Speed - Auxiliary

There are 2 separate operator controls for the auxiliary HVAC system. There is the front auxiliary HVAC control assembly and the rear seat audio (RSA) control module. If the front auxiliary blower motor switch is in the AUX. position, then the system will only function with inputs to the front auxiliary HVAC control assembly. If the front auxiliary blower motor switch is in the OFF position, then the RSA control module does not respond to input. The auxiliary HVAC control module can not request A/C operation from the PCM. A rocker type switch on the RSA control module provides the operator the ability to select several blower speeds.

The RSA control module uses a bar graph to indicate the selected blower speed. The auxiliary blower motor control processor supplies a 5-volt reference to the auxiliary HVAC control module on the auxiliary blower motor speed control circuit. The auxiliary HVAC control module pulls the 5-volt reference low towards ground to provide a blower motor speed signal. As the voltage decreases the blower speed increases. Power and ground are provided to the auxiliary blower motor control processor through the battery positive voltage and ground circuits.

Afterblow

Afterblow is a feature that dries the evaporator core by operating the blower motor after the engine is turned off.

This reduces the amount of microbial growth that can create undesirable odors. The vehicle does not come equipped with the afterblow feature turned on. If the afterblow feature is required due to an odor concern, it must be turned on by the scan tool.

The following conditions must be met for afterblow to operate:

Once the above conditions have been met the following sequence of events will occur:

Air Distribution

The HVAC control module controls the distribution of air by the use of a mode actuator. The modes that may be selected are:

The mode actuator is connected to the mode door by a cam type linkage system. Depending on the position of the door, air is directed through the HVAC module and distributed through various ducts leading to the outlets in the dash. If the HVAC control module detects a fault with the mode door the HVAC control module will try to drive the actuator for a predetermined amount of time, to defrost, which is the defaulted position for the mode door actuator. When the mode switch is placed in the defrost or defog positions the A/C is commanded on and the recirculation door is moved to the outside air position to help reduce window fogging. A/C is available in all modes and recirculation is only available in the panel and bi-level modes.

Mode Actuator

The Mode actuator is a 5-wire bi-directional electric motor that incorporates a feedback potentiometer. Low reference, 5-volt reference, position signal and 2 control circuits enable the actuator to operate. The control circuits use either a 0 or 12-volt value to coordinate the actuator movement. When the actuator is at rest, both control circuits have a value of 0 volts. In order to move the actuator, the HVAC control module grounds one of the control circuits while providing the other with 12 volts. The HVAC control module reverses the polarity of the control circuits to move the actuator in the opposite direction. When the actuator shaft rotates, the potentiometers adjustable contact changes the door position signal between 0-5 volts. The HVAC control module uses a range of 0-255 counts to index the actuator position. The door position signal voltage is converted to a 0-255 count range. When the module sets a commanded or targeted value, one of the control circuits is grounded. As the actuator shaft rotates the changing position signal is sent to the module. Once the position signal and the commanded value are the same, the module removes power and ground from the control circuits.

Front Defrost

When defrost is selected, the A/C compressor is activated. The A/C compressor clutch will engage when ambient temperatures are above 3ºC (38ºF). The blower motor will be activated, regardless of the coolant temperature. The HVAC control module will override the auxiliary HVAC control module so a high volume of air is delivered to the front defrost vents. The rear window defogger does not affect the HVAC system.

Air Distribution - Auxiliary Control

The auxiliary HVAC system provides ventilation for the rear seat occupants. The rear seat occupants will exercise control of the auxiliary air delivery modes, air speed and air temperature setting.

When the auxiliary mode switch is toggled, a signal is sent to the auxiliary mode actuator through the auxiliary mode door control circuit. Power and ground are supplied to the auxiliary mode actuator through the ignition 3 voltage and ground circuits.

When the HVAC control module is ON, the air that is delivered to the auxiliary HVAC system is the low auxiliary blower speed. When the operator selects medium blower speed, power is delivered to the auxiliary blower motor through the auxiliary blower motor medium speed control circuit.

When the operator selects high blower speed, power is delivered to the auxiliary blower motor through the auxiliary blower motor high speed control circuit. Ground is provided to the blower motor through the ground circuit. Power and ground are provided to the auxiliary HVAC control module through the ignition 3 voltage and ground circuits.

Recirculation Operation

The HVAC control module controls the air intake through the recirculation actuator. The recirculation switch closes the recirculation door in order to circulate the air within the vehicle. The outside air switch opens the recirculation door in order to route outside air into the vehicle. Regardless of the blower motor switch position, recirculation is available only in the panel and bi-level mode switch positions. Including the OFF position. The mode switch must be placed in either the panel or bi-level position before the blower motor switch is placed in the OFF position. In order to reduce windshield fogging, outside air is circulated when the mode switch is in the defrost or defog positions. If the recirculation switch is pressed into the ON position when the mode switch is in an unavailable mode position, then the recirculation switch LED will flash 3 times. If the HVAC control module detects a fault with the recirc door the HVAC control module will try to drive the actuator for a predetermined amount of time, to outside air, which is the defaulted position for the recirculation actuator.

Automatic Operation

In automatic operation, the HVAC control module will maintain the comfort level inside of the vehicle by controlling the A/C compressor clutch, the blower motor, the air temperature actuators, mode actuator and circulation.

To place the HVAC system in Automatic mode, the following is required:

Once the desired temperature is reached, the blower motor, mode, recirculation and temperature actuators will automatically be adjusted to maintain the temperature selected. The HVAC control module performs the following functions to maintain the desired air temperature:

AIR TEMPERATURE DESCRIPTION AND OPERATION

The air temperature controls are divided into 7 areas:

HVAC Control Components

The HVAC control module is a GMLAN device that interfaces between the operator and the HVAC system to maintain air temperature and distribution settings. The battery positive voltage circuit provides power that the control module uses for keep alive memory (KAM). If the battery positive voltage circuit loses power, all HVAC DTCs and settings will be erased from KAM. The body control module (BCM), which is the vehicle mode master, provides a device on signal. The control module supports the following features:

Buick Enclave. HVAC - Automatic

Auxiliary HVAC Control Module (without RSA)

The Auxiliary HVAC Control Module uses a set of three potentiometers to control rear fan speed, temperature and mode settings. The Auxiliary HVAC Control module has inputs for 5V and low Reference that is used by all three potentiometers. There are three signal circuits between each of the potentiometers and the HVAC Control Module.

Auxiliary HVAC Control Module (with RSA)

Auxiliary HVAC Control functions are integrated into the Rear Seat Entertainment Module. The Rear Seat Entertainment Module communicates Rear HVAC settings over serial data.

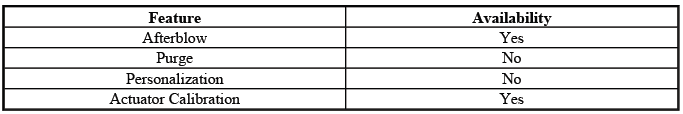

Auxiliary HVAC Control Functions

All Auxiliary functions and DTCs are handled by the HVAC control module. There are two ways the rear functions can be controlled.

Control from the HVAC control module: If the AUX button on the HVAC control module is pressed, the rear HVAC system will be enabled. The settings for the rear will mimic the Driver settings on the HVAC Control Module.

Control from the auxiliary HVAC control module: If at any time any of the three Auxiliary controls are adjusted, control of the rear HVAC System will transfer to the Auxiliary controls. If the Aux button is not currently enabled, adjusting the Auxiliary controls will enable it, even if the front system is Off.

Air Temperature Actuators

The air temperature actuator is a 5-wire bi-directional electric motor that incorporates a feedback potentiometer.

Low reference, 5-volt reference, position signal and 2 control circuits enable the actuator to operate. The driver air temperature actuator is a reverse polarity motor. The control circuits use either a 0 or 12-volt value to coordinate the actuator movement. When the actuator is at rest, both control circuits have a value of 0 volts. In order to move the actuator, the HVAC control module grounds one of the control circuits while providing the other with 12 volts. The HVAC control module reverses the polarity of the control circuits to move the actuator in the opposite direction. When the actuator shaft rotates, the potentiometers adjustable contact changes the door position signal between 0-5 volts. The HVAC control module uses a range of 0-255 counts to index the actuator position. The door position signal voltage is converted to a 0-255 count range. When the module sets a commanded or targeted value, one of the control circuits is grounded. As the actuator shaft rotates the changing position signal is sent to the module. Once the position signal and the commanded value are the same, the module removes power and ground from the control circuits.

Auxiliary Air Temperature Actuator

The auxiliary air temperature actuator is a 5-wire bi-directional electric motor that incorporates a feedback potentiometer. Low reference, 5-volt reference, position signal and 2 control circuits enable the actuator to operate. The driver air temperature actuator is a reverse polarity motor. The control circuits use either a 0 or 12- volt value to coordinate the actuator movement. When the actuator is at rest, both control circuits have a value of 0 volts. In order to move the actuator, the HVAC control module grounds one of the control circuits while providing the other with 12 volts. The HVAC control module reverses the polarity of the control circuits to move the actuator in the opposite direction. When the actuator shaft rotates, the potentiometers adjustable contact changes the door position signal between 0-5 volts. The HVAC control module uses a range of 0-255 counts to index the actuator position. The door position signal voltage is converted to a 0-255 count range.

When the module sets a commanded or targeted value, one of the control circuits is grounded. As the actuator shaft rotates the changing position signal is sent to the module. Once the position signal and the commanded value are the same, the module removes power and ground from the control circuits.

Air Temperature Sensor

The air temperature sensors are a 2-wire negative temperature co-efficient thermistor. The vehicle uses the following air temperature sensors:

A signal and low reference circuit enables the sensor to operate. As the air temperature surrounding the sensor increases, the sensor resistance decreases. The sensor signal voltage decreases as the resistance decreases. The sensor operates within a temperature range between -40 to +101ºC (-40 to +215ºF). The sensor signal varies between 0-5 volts.

The input of the duct air temperature sensors are different from the ambient and inside air temperature sensors.

The HVAC control module converts the signal to a range between 0-255 counts. As the air temperature increases the count value will decrease. If the HVAC control module or auxiliary HVAC control module detects a malfunctioning sensor, then the control module software will use a defaulted air temperature value. The default value for the ambient and inside air temperature sensors will be displayed on the scan tool. The default value for the duct air temperature sensors will not be displayed on the scan tool. The scan tool parameter for the duct air temperature sensors are the actual state of the signal circuit. The default action ensures that the HVAC system can adjust the inside air temperature near the desired temperature until the condition is corrected.

Ambient Air Temperature Sensor

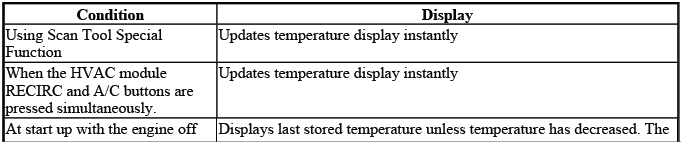

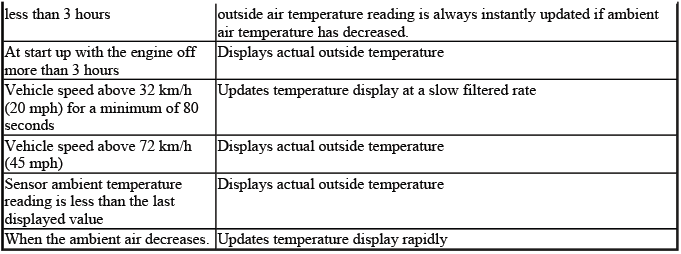

The ambient air temperature sensor mounts underhood and can be affected by city traffic, by idling and by restarting a hot engine. Therefore, the HVAC control module filters the value of the ambient air temperature sensor for temperature display. If the ambient air temperature sensor drops below 2ºC (35ºF) the compressor clutch will be disabled until the ignition is OFF for more than 3 hours or an instant OAT update is performed no matter what the actual temperature is due to the filtered value being used by the HVAC control module. The ambient air temperature value is updated under the following conditions:

Buick Enclave. HVAC - Automatic

Buick Enclave. HVAC - Automatic

Sunload Sensor Assembly

The sunload sensor is a 2-wire photo diode. The vehicle uses left and right sunload sensors. The 2 sensors are integrated into the sunload sensor assembly. Low reference and signal circuits enable the sensor to operate. As the light shining upon the sensor gets brighter, the sensor resistance increases. The sensor signal decreases as the resistance increases. The sensor operates within an intensity range between completely dark and bright. The sensor signal varies between 0-5 volts. The HVAC control module converts the signal to a range between 0-255 counts. The sunload sensor provides the HVAC control module a measurement of the amount of light shining on the vehicle. Bright or high intensity, light causes the vehicles inside temperature to increase. The HVAC system compensates for the increased temperature by diverting additional cool air into the vehicle. If the HVAC control module detects a malfunctioning sensor, then the control module software will use a defaulted sunload value. This value will not be displayed on the scan tool. The default action ensures that the HVAC system can adjust the inside air temperature near the desired temperature until the condition is fixed. The scan tool parameter for the sunload sensor is the actual state of the signal circuit.

Evaporator Temperature Sensor

The evaporator temperature sensor is a 2-wire negative temperature co-efficient thermistor. The sensor operates within a temperature range of -40 to +85ºC (-40 to +185ºF). The sensor is installed at the evaporator and measures its temperature. If the temperature drops under 3ºC (38ºF), the compressor will be switched off in order to prevent a frozen evaporator.

A/C Refrigerant Pressure Sensor

The A/C refrigerant pressure sensor is a 3-wire piezoelectric pressure transducer. A 5-volt reference, low reference and signal circuits enable the sensor to operate. The A/C pressure signal can be between 0-5 volts.

When the A/C refrigerant pressure is low, the signal value is near 0 volts. When the A/C refrigerant pressure is high, the signal value is near 5 volts. The powertrain control module (PCM) converts the voltage signal to a pressure value.

The A/C refrigerant pressure sensor protects the A/C system from operating when an excessively high pressure condition exists. The PCM disables the compressor clutch if the A/C pressure is more than 2957 kPa (429 psi).

The clutch will be enabled after the pressure decreases to less than 1578 kPa (229 psi).

Heating and A/C Operation

The purpose of the heating and A/C system is to provide heated and cooled air to the interior of the vehicle. The A/C system will also remove humidity from the interior and reduce windshield fogging. The vehicle operator can determine the passenger compartment temperature by adjusting the air temperature switch. The vehicle passenger can offset the passenger temperature as much as 16.7ºC (30ºF). Regardless of the temperature setting, the following can effect the rate that the HVAC system can achieve the desired temperature:

The control module makes the following actions when automatic operation is not selected and an air temperature setting is selected: When the air temperature switch is placed in the warmest position, the control module commands the air temperature door to divert maximum air past the heater core.

When the air temperature switch is placed in the coldest position, the control module commands the air temperature door to direct air to bypass the heater core.

When the air temperature switch is placed between the warmest and coldest positions, the control module monitors the following sensor inputs to determine the air temperature door position that diverts the appropriate amount of air past the heater core in order to achieve the desired temperature:

The A/C system can be engaged by either pressing the A/C switch or during automatic operation. The HVAC control module sends a GMLAN message to the PCM for A/C compressor engagement. The PCM will provide a ground for the A/C compressor relay enabling it to close its internal contacts to send battery voltage to the A/C compressor clutch coil. The A/C compressor diode will prevent a voltage spike, resulting from the collapse of the magnetic field of the coil, from entering the vehicle electrical system when the compressor is disengaged.

The following conditions must be met in order for the A/C compressor clutch to turn on:

The HVAC control module monitors the A/C low pressure switch signal circuit. If the voltage signal on this circuit has no voltage drop the module will interpret this condition as a low pressure, disabling the A/C request.

The A/C low pressure switch will open its internal contacts at 151 kPa (22 psi). Then close the contacts at 275 kPa (40 psi) to resume A/C operation. This switch assists in cycling the A/C compressor and prevents A/C compressor operation if system has a low refrigerant level.

The PCM monitors the A/C refrigerant pressure sensor signal circuit. The voltage signal on this circuit is proportional to the refrigerant pressure inside the A/C high side pressure line. As the pressure inside the line increases, so does the voltage signal. If the pressure is above 2957 kPa (429 psi), the A/C compressor output is disabled. When the pressure lowers to 1578 kPa (229 psi), the PCM enables the compressor to operate.

The sensor information is used by the PCM to determine the following:

Once engaged, the compressor clutch will be disengaged for the following conditions:

Automatic Operation

In automatic operation, the HVAC control module will maintain the comfort level inside of the vehicle by controlling the A/C compressor clutch, the blower motor, the air temperature actuators, mode actuator and recirculation.

To place the HVAC system in Automatic mode, the following is required: The Auto switch must be activated The air temperature switch must be in any other position other than full hot or full cold position Once the desired temperature is reached, the blower motor, mode, recirculation and temperature actuators will automatically be adjusted to maintain the temperature selected. The HVAC control module performs the following functions to maintain the desired air temperature:

In automatic operation, the auxiliary HVAC control module will maintain the comfort level inside of the vehicle by controlling the auxiliary blower motor, the auxiliary air temperature actuator and the auxiliary mode actuator.

To place the auxiliary HVAC system in Automatic mode, the following is required:

Once the desired temperature is reached, the auxiliary blower motor, auxiliary mode and auxiliary temperature actuator will automatically be adjusted to maintain the temperature selected. The auxiliary HVAC control module performs the following functions to maintain the desired air temperature:

Engine Coolant

Engine coolant is the essential element of the heating system. The thermostat controls the normal engine operating coolant temperature. The thermostat also creates a restriction for the cooling system that promotes a positive coolant flow and helps prevent cavitation. Coolant enters the heater core through the inlet heater hose, in a pressurized state. The heater core is located inside the HVAC module. The ambient air drawn through the HVAC module absorbs the heat of the coolant flowing through the heater core. Heated air is distributed to the passenger compartment, through the HVAC module, for passenger comfort. Opening or closing the air temperature door controls the amount of heat delivered to the passenger compartment. The coolant exits the heater core through the return heater hose and recirculated back through the engine cooling system.

SPECIAL TOOLS AND EQUIPMENT

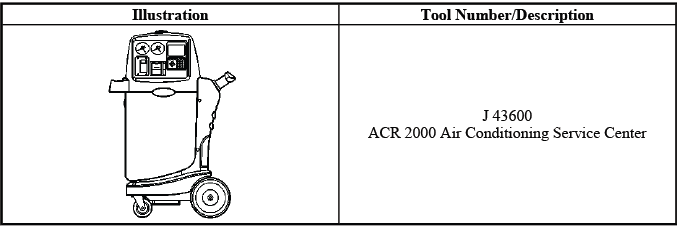

SPECIAL TOOLS

Buick Enclave. HVAC - Automatic
