Instrument Panel Illumination Control

The instrument panel brightness knob is located on the instrument panel to the

The instrument panel brightness knob is located on the instrument panel to the left of the steering column.

the knob in all the way until it extends out and then turn the knob clockwise or (Instrument Panel Brightness): Push the knob in all the way until it extends out and then turn the knob clockwise or counterclockwise to brighten or dim the lights. Push the knob back in when finished.

Courtesy Lamps

The courtesy lamps automatically come on when a door is opened.

The lamps can also be turned on manually by fully turning the instrument panel brightness control clockwise.

The reading lamps, located on the headliner above the rearview mirror, can be turned on or off independently of the automatic courtesy lamps, when the doors are closed.

Dome Lamps

The dome lamps are located in the overhead console and above the rear seat passengers.

The dome lamps come on when a door is opened, unless the dome lamp override button is pressed in.

The lamps can also be turned on and off by turning the instrument panel brightness control clockwise to the farthest position.

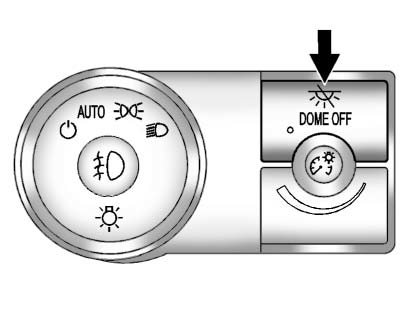

Dome Lamp Override

The dome lamp override button is next to the exterior lamps control.

The dome lamp override button is next to the exterior lamps control.

the top of the button in and the dome lamps remain off when a door is opened. DOME OFF (Dome Lamp Override): Press the top of the button in and the dome lamps remain off when a door is opened.

An indicator light on the button comes on to show that the dome lamps are off. Press near the bottom of the button so the dome lamps come on when a door is opened.

READ NEXT:

 Reading Lamps

Press the button near each lamp to turn them on or off.
