Buick Enclave: Mirror Adjustment. Steering Wheel Adjustment. Interior Lighting

Buick Enclave 2008-2017 Owners Manual / In Brief / Initial Drive Information / Mirror Adjustment. Steering Wheel Adjustment. Interior Lighting

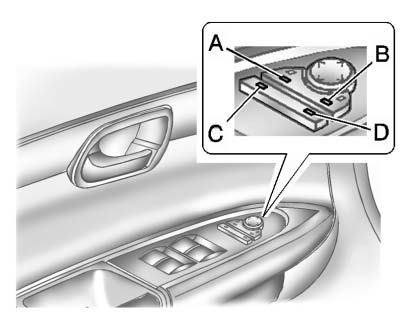

Mirror Adjustment

Exterior Mirrors

To adjust each mirror:

To adjust each mirror:

1. Press (A) or (B) to select the mirror.
2. Press the control pad to adjust the mirror.
3. Press (A) or (B) again to deselect the mirror.

Folding Mirrors

For vehicles with power folding mirrors:

1. Press (C) to fold the mirrors out to the driving position.
2. Press (D) to fold the mirrors in to the folded position.

For vehicles with manual folding mirrors, push the mirror toward the vehicle. Pull the mirror out to return to its original position.

Interior Mirror

The automatic dimming rearview mirror reduces the glare from other vehicle headlamps. Each time the vehicle is started, the dimming feature comes on.

See Automatic Dimming Rearview Mirror

Steering Wheel Adjustment

1. Pull the lever (A) down.

1. Pull the lever (A) down.
2. Move the steering wheel up or down.
3. Pull or push the steering wheel closer or away from you.
4. Push the lever (A) up to lock the steering wheel in place.

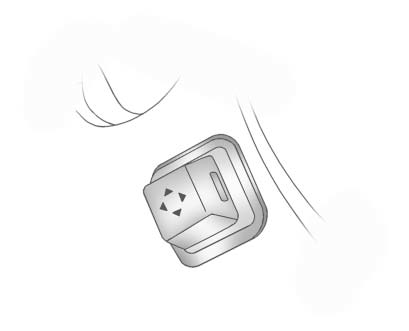

Power Tilt Wheel

For vehicles with the power tilt and telescope wheel, the control is on the outboard

For vehicles with the power tilt and telescope wheel, the control is on the outboard side of the steering column.

Push the control up or down to tilt the steering wheel up or down.

Push the control forward or rearward to move the steering wheel toward the front or rear of the vehicle. To set the memory position, see Vehicle Personalization .

Do not adjust the steering wheel while driving.

Interior Lighting

Dome Lamps

The dome lamps are located in the overhead console and above the rear seat passengers.

The dome lamps come on when a door is opened, unless the dome lamp override button is pressed in.

To manually turn them on, turn the instrument panel brightness control clockwise to the farthest position.

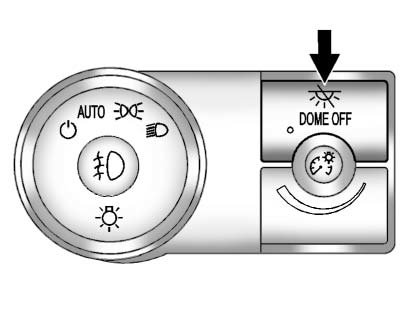

Dome Lamp Override

The dome lamp override button is next to the exterior lamps control.

The dome lamp override button is next to the exterior lamps control.

in and the dome lamps remain off when a door is opened. DOME OFF: Press the top of the button in and the dome lamps remain off when a door is opened.

An indicator light on the button comes on to show that the dome lamps are off. Press near the bottom of the button so the dome lamps come on when a door is opened.

Reading Lamps

Press the button near each lamp to turn them on or off.

For more information, see:

► Dome Lamps .

► Instrument Panel Illumination Control .
