Buick Enclave: Armrest Storage. Floor Console Storage

Buick Enclave 2008-2017 Owners Manual / Storage / Storage Compartments / Armrest Storage. Floor Console Storage

Armrest Storage

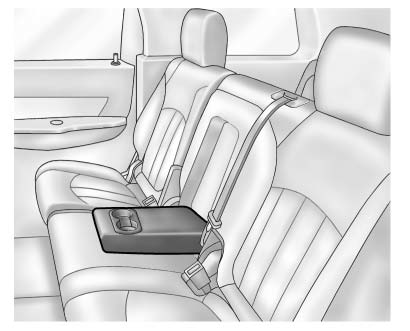

Vehicles with a rear seat armrest have two cupholders. Pull the armrest down

Vehicles with a rear seat armrest have two cupholders. Pull the armrest down to access the cupholders.

Center Console Storage

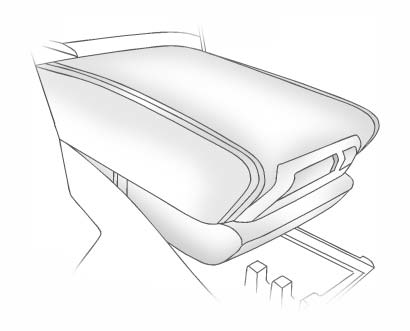

Pull up on the lever, located on the front of the center console armrest, to

Pull up on the lever, located on the front of the center console armrest, to slide it forward and backward.

To open the armrest storage area, press the button located on the front of the armrest.

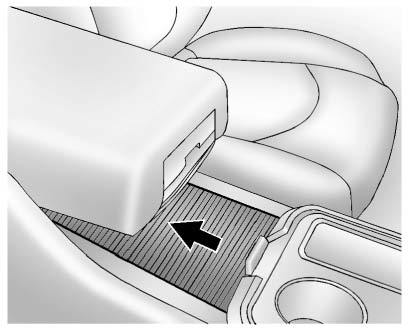

There is additional storage under the armrest. Move the armrest all the way to

There is additional storage under the armrest. Move the armrest all the way to the rear position then slide the storage cover back to access.

Floor Console Storage

For vehicles with a second row center console, open each area to access the storage

For vehicles with a second row center console, open each area to access the storage compartment inside.

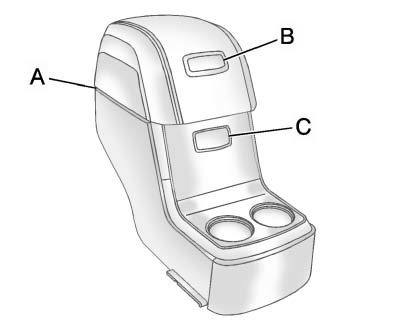

To access the upper storage area, press the upper button (B) and lift up. To

To access the upper storage area, press the upper button (B) and lift up. To access the lower storage area, press the lower button (C) and lift up. The top of the console can be folded forward for increased storage area. Lift up on the handle on the rear of the console (A) and pull forward.

Never open more than one of the three latches at a time to help avoid personalWARNING
Never open more than one of the three latches at a time to help avoid personal injury and damage to the console.

Notice: Slide the front console as far forward as it will go before folding the second row console forward to help prevent damage to the consoles.
