Buick Enclave: Halogen Bulbs. High Intensity Discharge (HID) Lighting. Taillamps, Turn Signal, Sidemarker, and Stoplamps

Halogen Bulbs

WARNING
Halogen bulbs have pressurized gas inside and can burst if you drop or scratch the bulb. You or others could be injured. Be sure to read and follow the instructions on the bulb package.

High Intensity Discharge (HID) Lighting

WARNING
The low beam high intensity discharge lighting system operates at a very high voltage.

If you try to service any of the system components, you could be seriously injured. Have your dealer or a qualified technician service them.

After an HID headlamp bulb has been replaced, the beam might be a slightly different shade than it was originally. This is normal.

Taillamps, Turn Signal, Sidemarker, and Stoplamps

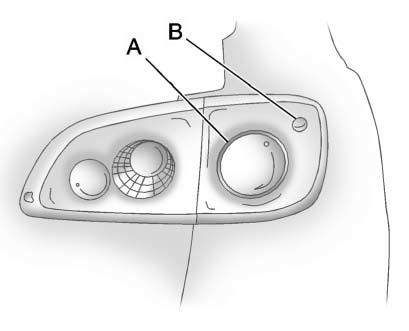

A. Taillamp
B. Sidemarker Lamp

To replace one of these bulbs:

1. Open the liftgate. See Liftgate .
2. Remove the black cuff from the lamp assembly by pulling rearward from the top to unfasten it from the snap tabs.
3. Remove the two hex nuts holding the taillamp assembly in place.
4. Pull out the taillamp assembly.
5. Turn the bulb socket counterclockwise and pull it straight out to remove it.
6. Replace the bulb.
7. Reverse Steps 3 through 5 to reinstall the taillamp assembly.

When reinstalling the taillamp assembly, the pin on the taillamp assembly must line up and be inserted correctly into the opening.
8. Replace the black cuff over the lamp assembly by pushing it into the snap tabs.
