Buick Enclave: Recommended Fluids and Lubricants. Maintenance Replacement Parts. Maintenance Records

Buick Enclave 2008-2017 Owners Manual / Service and Maintenance / Recommended Fluids, Lubricants, and / Recommended Fluids and Lubricants. Maintenance Replacement Parts. Maintenance Records

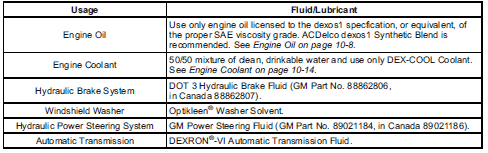

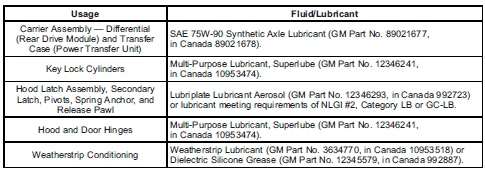

Recommended Fluids and Lubricants

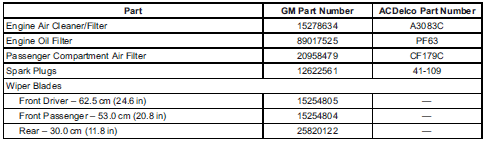

Maintenance Replacement Parts

Replacement parts identified below by name, part number, or specification can be obtained from your dealer

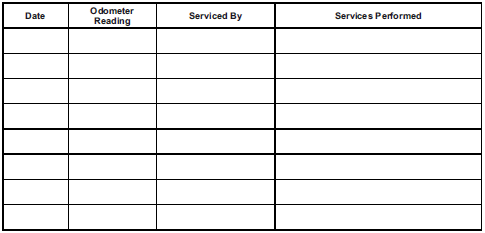

Maintenance Records

After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed in the boxes provided. Retain all maintenance receipts.
