Buick Enclave: MP3 (Radio with CD/DVD)

Buick Enclave 2008-2017 Owners Manual / Infotainment System / Audio Players / MP3 (Radio with CD/DVD)

Format

The radio can play.mp3 or .wma files recorded onto a CD-R or CD-RW disc.

The USB port can play.mp3 and .wma files that are stored on a USB storage device as well as AAC files stored on an iPod.

Compressed Audio or Mixed Mode Discs

play batery

The radio plays discs that contain both uncompressed CD audio and MP3/WMA files depending on which slot the disc is loaded into.

The DVD Player only reads uncompressed audio and ignores MP3/WMA files on a mixed mode disc.

The CD Player reads both uncompressed audio and MP3/WMA files on a mixed mode disc. Uncompressed audio is played before MP3/WMA files.

Press the CAT (category) button to toggle between uncompressed audio and MP3/WMA files.

CD-R or CD-RW Supported File and Folder Structure

The DVD Player supports:

► Up to 255 folders.

► Up to eight folders in depth.

► Up to 15 playlists.

► Up to 40 sessions.

► Playlists with an .m3u or .wpl extension.

► Files with an .mp3, .wma, or .cda file extension.

The CD Player supports:

► Up to 512 files and folders.

► Up to eight folders in depth.

► Playlists with an .m3u or .wpl extension.

► Files with an .mp3, .wma, or .cda file extension.

USB Supported File and Folder Structure

The radio supports:

► Up to 700 folders.

► Up to eight folders in depth.

► Up to 65,535 files.

► Folder and file names up to 64 bytes.

► Files with an .mp3 or .wma file extension.

► AAC files stored on an iPod.

► FAT16
► FAT32

Root Directory

The root directory of the disc is treated as a folder. If the root directory has compressed audio files, the directory displays as F1 ROOT on the radio.

If a disc contains both uncompressed CD audio and MP3/WMA files, a folder under the root directory called CD accesses all of the CD audio tracks on the disc.

Empty Folder

Folders that do not contain files are skipped, and the player advances to the next folder that contains files.

No Folder

When the disc contains only compressed files, the files are located under the root folder.

The next and previous folder function does not function on a disc that was recorded without folders or playlists. When displaying the name of the folder the radio displays ROOT.

When the disc contains only playlists and compressed audio files, but no folders, all files are located under the root folder.

The folder down and the folder up buttons search playlists first and then go to the root folder. When the radio displays the name of the folder the radio displays ROOT.

Order of Play

Compressed audio files are accessed in the following order:

► Playlists.

► Files stored in the root directory.

► Files stored in folders in the root directory.

Tracks are played in the following order:

► Play begins from the first track in the first playlist and continues sequentially through all tracks in each playlist. When the last track of the last playlist has played, play continues from the first track of the first playlist.

► Play begins from the first track in the first folder and continues sequentially through all tracks in each folder. When the last track of the last folder has played, play continues from the first track of the first folder.

When play enters a new folder, the display does not automatically show the new folder name unless the folder mode has been chosen as the default display. The new track name displays.

File System and Naming

The song name that displays is the song name contained in the ID3 tag.

If the song name is not present in the ID3 tag, then the radio displays the file name without the extension (such as .mp3) as the track name.

Track names longer than 32 characters or four pages are shortened. Parts of words on the last page of text and the extensio

Preprogrammed Playlists

Preprogrammed playlists created using WinAmp™, MusicMatch™, or Real Jukebox™ software can be accessed; however, they cannot be edited using the radio. These playlists are treated as special folders containing compressed audio song files.

Playlists that have an .m3u or .pls file extension and are stored on a USB device may be supported by the radio with a USB port.

Playing an MP3/WMA File From a Disc (In Either the DVD or CD Slot)

If a disc is inserted into the top DVD slot, the rear seat operator can turn on the video screen and use the remote control to navigate the CD (tracks only).

SEEK: Press to go to the start of (Tune): Turn to select MP3/WMA files.

the track, if more than five seconds have played. Press to go to the previous track SEEK: Press to go to the start of the track, if more than five seconds have played. Press to go to the previous track if less than five seconds have played. Press and hold or press multiple times to continue moving backward through tracks.

Press and hold or press multiple times to continue moving forward through tracks. SEEK: Press to go to the next track. Press and hold or press multiple times to continue moving forward through tracks.

reverse playback quickly. Sound is heard at a reduced volume and the elapsed time REV (Reverse): Press and hold to reverse playback quickly. Sound is heard at a reduced volume and the elapsed time of the file displays.

Release FWD (Fast Forward): Press and hold REV to resume playing.

to advance playback quickly. Sound is heard at a reduced volume and the elapsed FWD (Fast Forward): Press and hold to advance playback quickly. Sound is heard at a reduced volume and the elapsed time of the file displays. Release FWD to resume playing. The elapsed time of the file displays. FWD to resume playing. The elapsed time of the file displays.

below  to go to the first track in the (Previous Folder): Press the softkey below previous folder. to go to the first track in the previous folder.

below  to go to the first track in the (Next Folder): Press the softkey below next folder. to go to the first track in the next folder.

RDM (Random): Files on the disc can be listened to in random, rather than sequential order. To use random, press the softkey under the RDM tab until Random Current Disc displays to play songs in random order. Press the same softkey again to turn off random play.

below  to play files in order by artist (Music Navigator): Press the softkey below or album. to play files in order by artist or album.

The player scans the disc to sort the files by artist and album ID3 tag information. It can take several minutes to scan the disc depending on the number of files on the disc.

The radio may begin playing while it is scanning in the background.

When the scan is finished, the disc begins playing files in order by artist. The current artist playing is shown on the second line of the display. Once all songs by that artist are played, the player moves to the next artist in alphabetical order and begins playing files by that artist.

To listen to files by another artist, press the softkey located below either arrow tab. The disc goes to the next or previous artist in alphabetical order. Continue pressing either softkey below the arrow tab until the artist displays.

To change from playback by artist to playback by album:

1. Press the softkey located below the Sort By tab.
2. Press one of the softkeys below the Album tab from the sort screen.
3. Press the softkey below the Back tab to return to the main music navigator screen.

The album name displays on the second line between the arrows and songs from the current album begins to play. Once all songs from that album have played, the player moves to the next album in alphabetical order on the CD and begins playing MP3 files from that album.

To exit music navigator mode, press the softkey below the Back tab to return to normal MP3 playback.

Connecting a USB Storage Device or iPod®

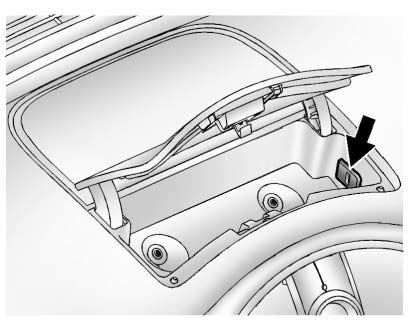

To connect a USB storage device, connect the device to the USB port located in

To connect a USB storage device, connect the device to the USB port located in the instrument panel storage area. See Instrument Panel Storage  for more information.

The USB port can be used to control an iPod or a USB storage device.

To connect an iPod, connect one end of the USB cable that came with the iPod to the iPod’s dock connector, and connect the other end to the USB port located in the instrument panel storage area.

If the vehicle is on and the USB connection works, “OK to disconnect” and a GM logo may appear on the iPod, and iPod appears on the radio's display.

The iPod music appears on the radio’s display and begins playing.

The iPod charges while it is connected to the vehicle if the vehicle is in the ACC/ACCESSORY or ON/RUN position. When the vehicle is turned off, the iPod automatically powers off and will not charge or draw power from the vehicle's battery.

If you have an older iPod model that is not supported, it can still be used by connecting it to the auxiliary input jack using a standard 3.5 mm (1/8 in) stereo cable. See Auxiliary Devices  for more information.

Using the Radio to Control a USB Storage Device or iPod

The radio can control a USB storage device or an iPod using the radio buttons and knobs and display song information on the radio’s display.

SEEK: Press to go to the start of (Tune): Turn to select files.

the track, if more than 10 seconds have played. Press and hold or press multiple SEEK: Press to go to the start of the track, if more than 10 seconds have played. Press and hold or press multiple times to continue moving backward through tracks.

Press and hold or press multiple times to continue moving forward through tracks. SEEK: Press to go to the next track. Press and hold or press multiple times to continue moving forward through tracks.

reverse playback quickly. REV (Reverse): Press and hold to reverse playback quickly.

Sound is heard at a reduced volume. Release time of the file displays. REV to resume playing. The elapsed time of the file displays.

to advance playback quickly. Sound is heard at a reduced volume. Release FWD (Fast Forward): Press and hold to advance playback quickly. Sound is heard at a reduced volume. Release of the file displays. FWD to resume playing. The elapsed time of the file displays.

information about the selected track. (Information): Press to display additional information about the selected track.

Using Softkeys to Control a USB Storage Device or iPod

The five softkeys below the radio display are used to control the functions listed below.

To use the softkeys:

1. Press the first or fifth softkey below the radio display to display the functions listed below, or press the softkey below the function if it is currently displayed.

2. Press the softkey below the tab with the function on it to use that function.

to pause the track. (Pause): Press the softkey below The tab appears raised when pause is being used. Press the softkey below to pause the track.

The tab appears raised when pause is being used. Press the softkey below Back: Press the softkey below the Back tab to go back to the main display screen again to resume playback.

Back: Press the softkey below the Back tab to go back to the main display screen on an iPod, or the root directory on a USB storage device.

below  to view the contents of the current (Folder View): Press the softkey below folder on the USB drive. To browse and select files: to view the contents of the current folder on the USB drive. To browse and select files:

1. Press the softkey below 2. Turn  to scroll through the list of.
2. Turn folders. to scroll through the list of folders.
3. Press If there is more than one folder, repeat Steps 1 and 2 until the folder is reached. to select the folder.

If there is more than one folder, repeat Steps 1 and 2 until the folder is reached.

4. Turn in the selected folder. to scroll through the files in the selected folder.
5. Press To skip through large lists, the five softkeys can be used to navigate in the to select the file to be played.

To skip through large lists, the five softkeys can be used to navigate in the following order:

► First softkey, first item in the list.

► Second softkey, 1% through the list each time the softkey is pressed.

► Third softkey, 5% through the list each time the softkey is pressed.

► Fourth softkey, 10% through the list each time the softkey is pressed.

► Fifth softkey, end of the list.

below  to view and select a file on (Music Navigator): Press the softkey below an iPod, using the iPod's menu system. Files are sorted by: to view and select a file on an iPod, using the iPod's menu system. Files are sorted by:

► Playlists . Artists . Albums . Genres . Songs . Composers To select files:

1. Press the softkey below 2. Turn  to scroll through the list.
2. Turn of menus. to scroll through the list of menus.
3. Press 4. Turn  to scroll through the folders to select the menu.
4. Turn or files in the selected menu. to scroll through the folders or files in the selected menu.
5. Press To skip through large lists, the five softkeys can be used to navigate in the to select the file to be played.

To skip through large lists, the five softkeys can be used to navigate in the following order:

► First softkey, first item in the list.

► Second softkey, 1% through the list each time the softkey is pressed.

► Third softkey, 5% through the list each time the softkey is pressed.

► Fourth softkey, 10% through the list each time the softkey is pressed.

► Fifth softkey, end of the list.

Repeat Functionality

To use Repeat:

Press the softkey below to select between Repeat All and Repeator Track. to select between Repeat All and Repeat Track.

below  to repeat all tracks. The tab (Repeat All): Press the softkey below appears lowered when Repeat All is being used. This is the default mode when a USB to repeat all tracks. The tab appears lowered when Repeat All is being used. This is the default mode when a USB storage device or iPod is first connected.

below  to repeat one track. The tab (Repeat Track): Press the softkey below appears raised when Repeat Track is being used. to repeat one track. The tab appears raised when Repeat Track is being used.

Shuffle Functionality To use Shuffle:

Press the softkey below or to select between Shuffle Off, Shuffle or All Songs/ Shuffle Songs, Shuffle Album, or Shuffle Folder. to select between Shuffle Off, Shuffle All Songs/ Shuffle Songs, Shuffle Album, or Shuffle Folder.

mode when a USB storage device or iPod is first connected. (Shuffle Off): This is the default mode when a USB storage device or iPod is first connected.

Shuffles all songs on the USB storage device or iPod. (Shuffle All Songs/Shuffle Songs): Shuffles all songs on the USB storage device or iPod.

in the current album on an iPod. (Shuffle Album): Shuffles all songs in the current album on an iPod.

in the current folder on a USB storage device. (Shuffle Folder): Shuffles all songs in the current folder on a USB storage device.
