Buick Enclave: Description and Operation

TRANSFER CASE DESCRIPTION AND OPERATION

Buick Enclave. Transfer Case - Getrag 790

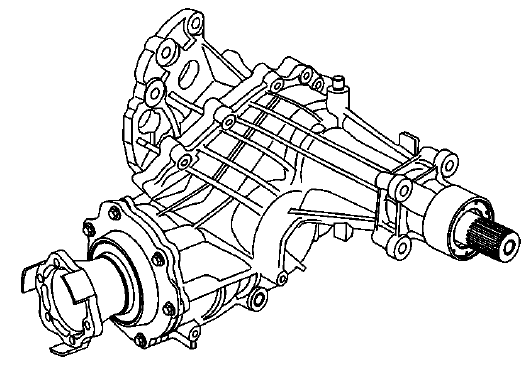

Fig. 46: Identifying Transfer Case

The transfer case in this vehicle consists of an aluminum housing with input helical gear, output driven helical gear, ring and pinion hypoid gear set and an intermediate drive shaft.

The transfer case transfers torque/power to the on-demand rear differential through a prop shaft assembly.

The on-demand rear differential distributes variable torque/power to the rear wheels through individual axle shafts.

Within the rear differential assembly is an active on-demand coupling system.

The on-demand system rear differential control module monitors wheel speed, vehicle speed, wheel slippage and other variables. The module directs the rear differential to distribute torque to the rear wheels as required.

Typical conditions when torque is applied are during vehicle launches, even without wheel slip and when there is front wheel slippage relative to the rear wheels. The amount of torque depends on the vehicle speed and the amount of wheel slippage.

NEW PRODUCT INFORMATION

The purpose of New Product Information is to document, important product changes which occur either model year-to-model year or interim model year.

Changes may include one or more of the following items:

TRANSFER CASE IDENTIFICATION

Identification Tag Marking

Buick Enclave. Transfer Case - Getrag 790

Fig. 47: Identification Tag Marking

Buick Enclave. Transfer Case - Getrag 790

SPECIAL TOOLS AND EQUIPMENT

SPECIAL TOOLS

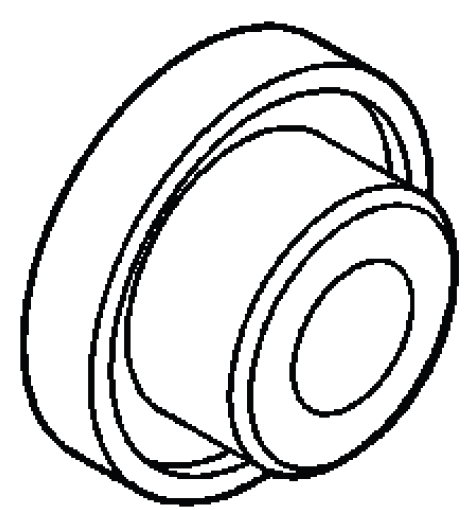

DT-48074 Input and Output Shaft Seal Installer

Buick Enclave. Transfer Case - Getrag 790

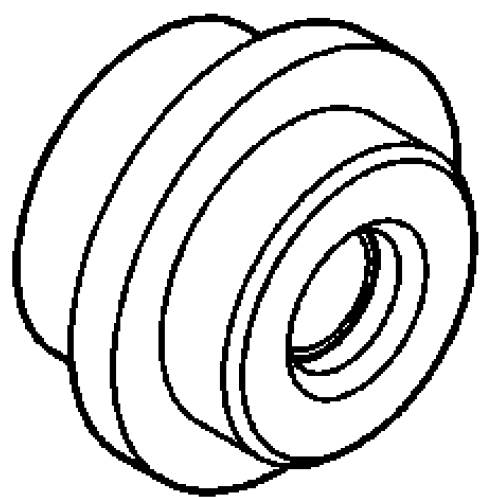

DT-48075 Output Shaft Seal Installer

Buick Enclave. Transfer Case - Getrag 790

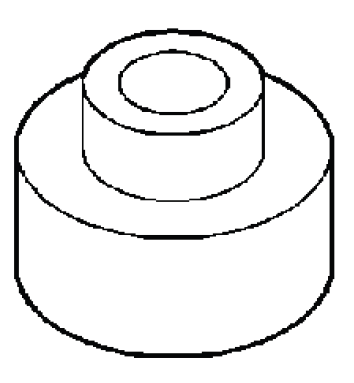

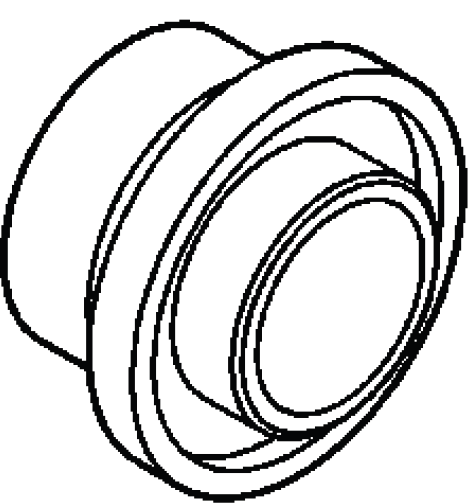

DT-48077 Output Shaft Slinger Installer

Buick Enclave. Transfer Case - Getrag 790

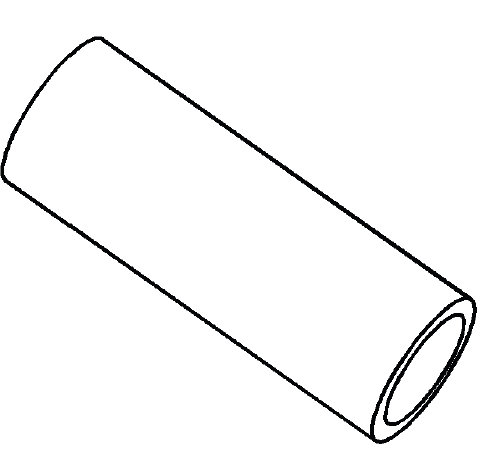

DT-48078 Inner Drive Shaft Seal Installer

Buick Enclave. Transfer Case - Getrag 790

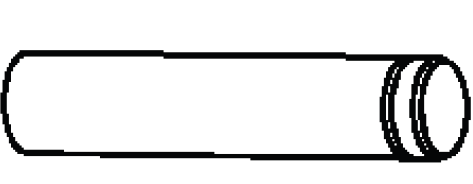

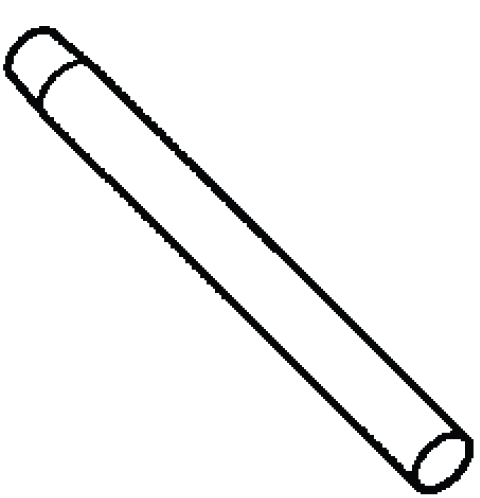

DT-48094 Inner Drive Shaft Seal Protector

Buick Enclave. Transfer Case - Getrag 790

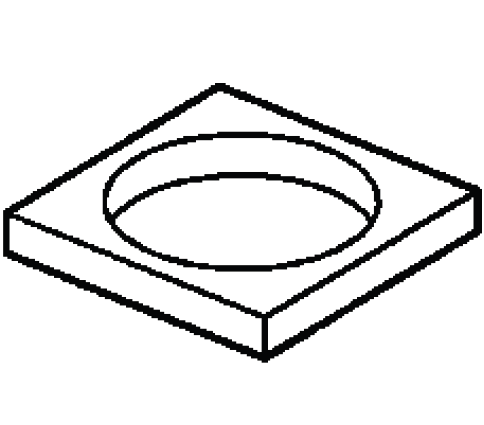

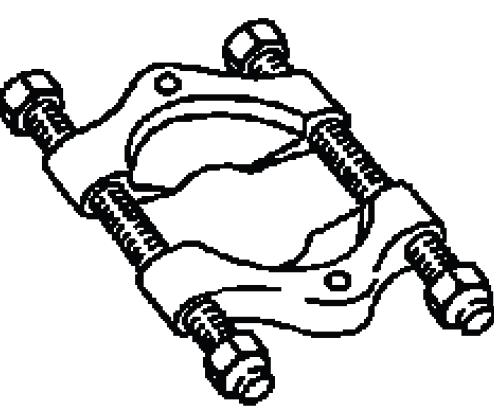

DT-48145 Press Support

Buick Enclave. Transfer Case - Getrag 790

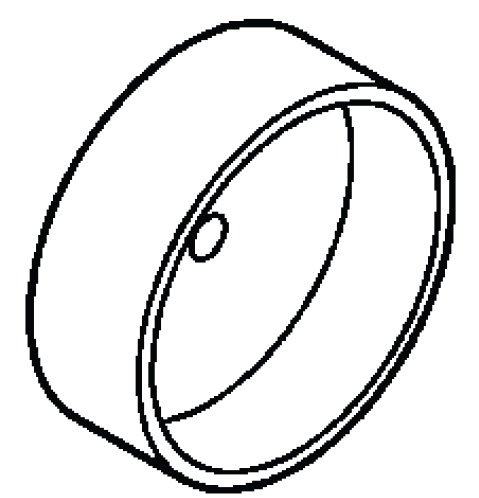

J 5590 Pinion Bearing Race Installer - Rear

Buick Enclave. Transfer Case - Getrag 790

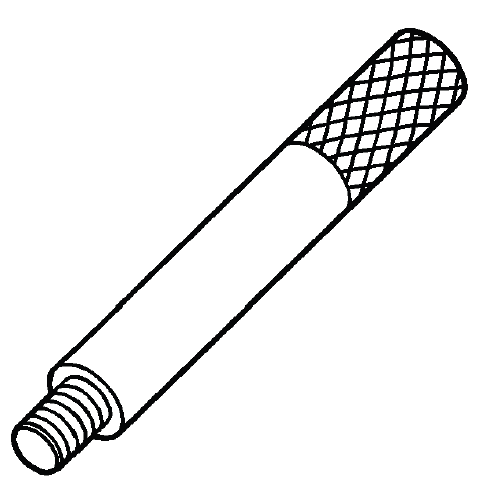

J 8092 Driver Handle

Buick Enclave. Transfer Case - Getrag 790

J-08614-A Pinion Flange Holder and Remover

Buick Enclave. Transfer Case - Getrag 790

DT-22912-B
J 22912-B
KM-307-B

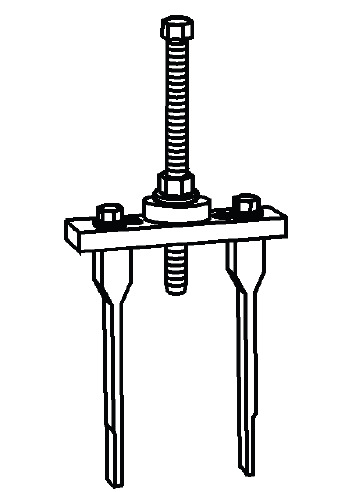

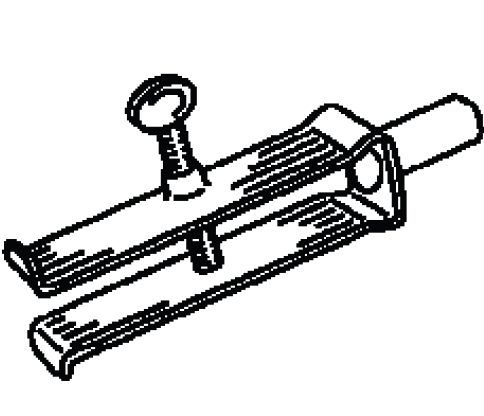

Rear Pinion and Axle Bearing Remover

Buick Enclave. Transfer Case - Getrag 790

EL-25070
J 25070
Heat Gun - 500-750 F

Buick Enclave. Transfer Case - Getrag 790

DT 26941
J 26941
KM-J 26941
Bushing and Bearing Remover - 3-4

Buick Enclave. Transfer Case - Getrag 790

GE 28431-6
J 28431-6
Fluorescent Oil Dye 6 1-oz

Buick Enclave. Transfer Case - Getrag 790

GE 28428-E
J 4220
J 28428-E

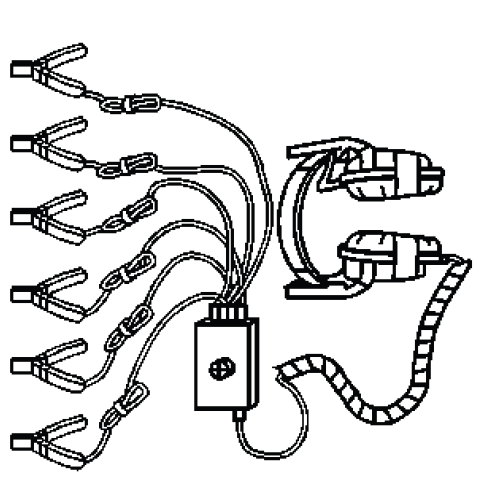

High-Intensity Black Light Kit

Buick Enclave. Transfer Case - Getrag 790

EN 29873
J 29873

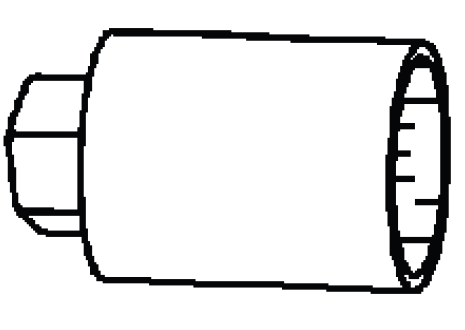

Injector Nozzle Socket 30 mm

Buick Enclave. Transfer Case - Getrag 790

CH 39570
J 39570

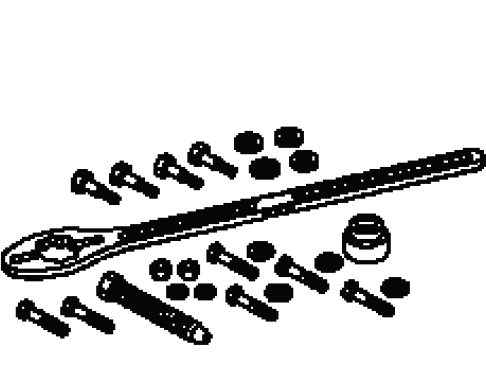

Chassis Ears

Buick Enclave. Transfer Case - Getrag 790

DT 45124
J 45124
Removal Bridge

Buick Enclave. Transfer Case - Getrag 790
