Buick Enclave: Repair Instructions - Off Vehicle
TRANSFER CASE DISASSEMBLE

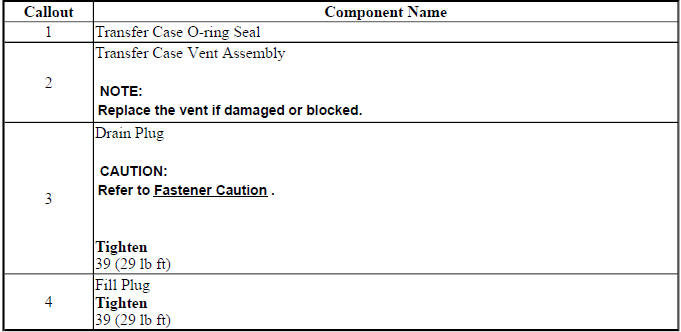

Housing O-ring, Vent Assembly, Drain and Fill Plug Removal

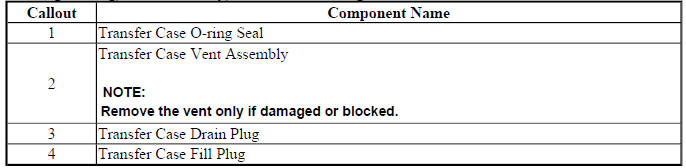

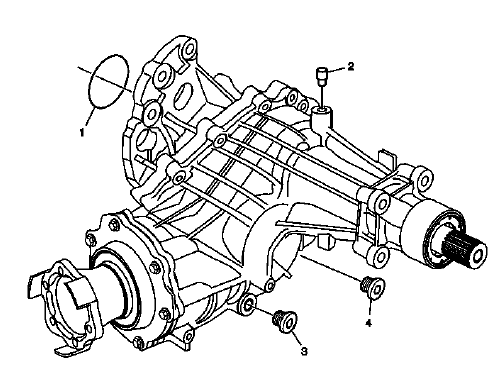

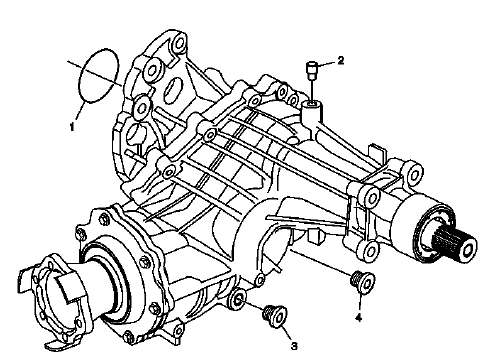

Fig. 27: View Of Transfer Case Housing O-Ring, Vent Assembly, Drain & Fill
Plugs
Housing O-Ring, Vent Assembly, Drain and Fill Plug Removal
Intermediate Drive Shaft Removal

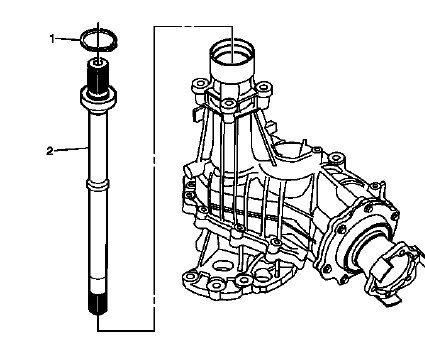

Fig. 28: Identifying Intermediate Drive Shaft
Intermediate Drive Shaft Removal

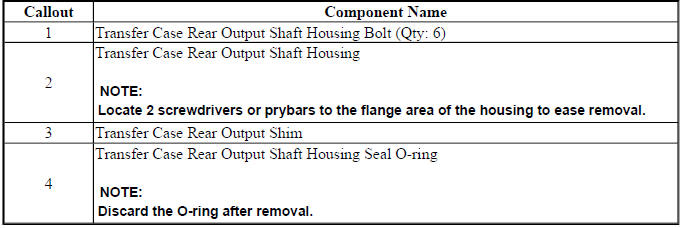

Rear Output Shaft Housing Removal

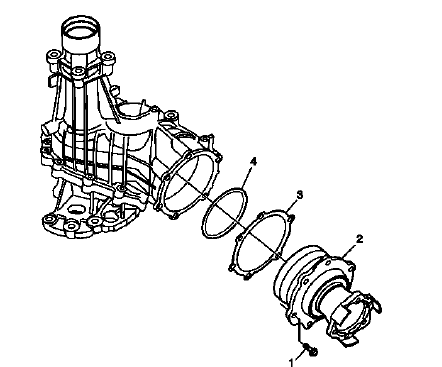

Fig. 29: View Of Rear Output Shaft Housing
Rear Output Shaft Housing Removal
Right Transfer Case, Input and Output Drive Shaft Removal

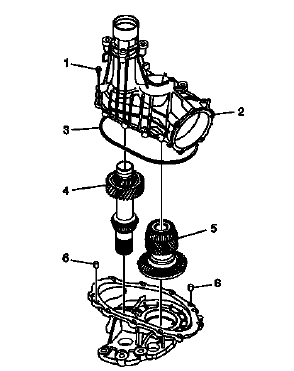

Fig. 30: Identifying Right Transfer Case, Input & Output Drive Shaft

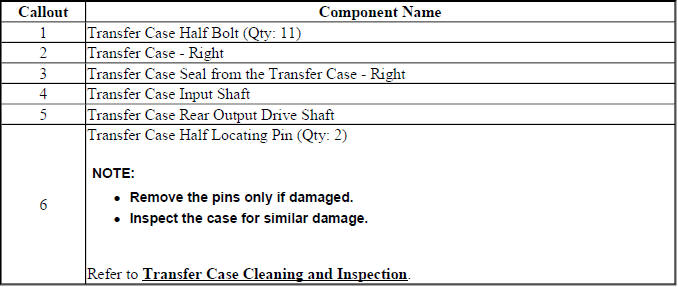

Right Transfer Case, Input and Output Drive Shaft Removal

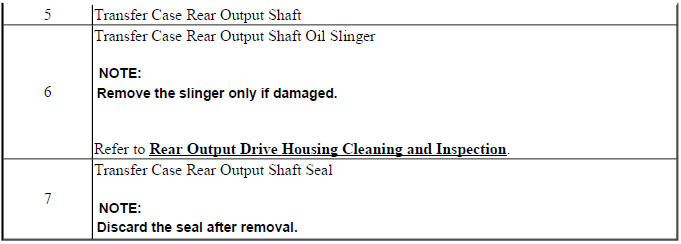

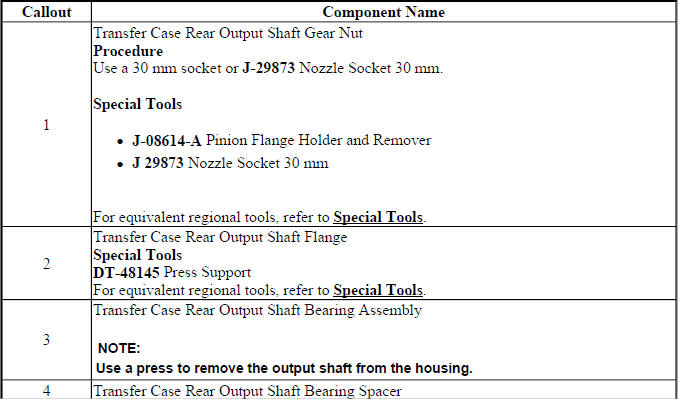

Rear Output Shaft Housing Disassembly

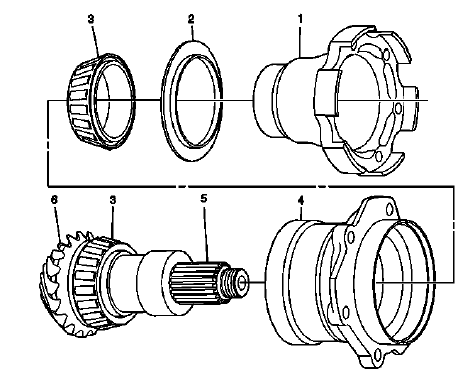

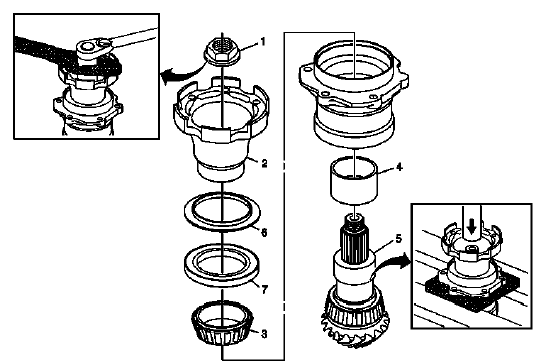

Fig. 31: Exploded View Of Rear Output Shaft Housing
Rear Output Shaft Housing Disassembly

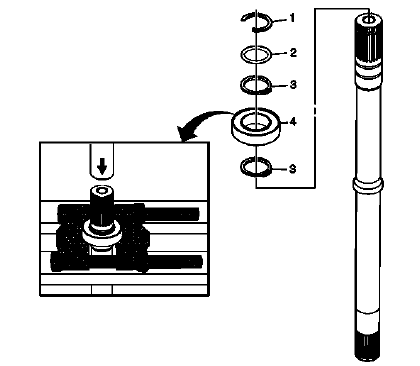

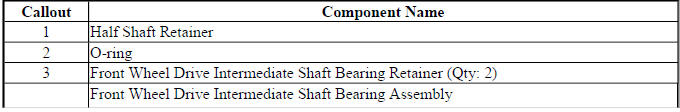

Intermediate Drive Shaft Disassembly
Fig. 32: Identifying Intermediate Drive Shaft

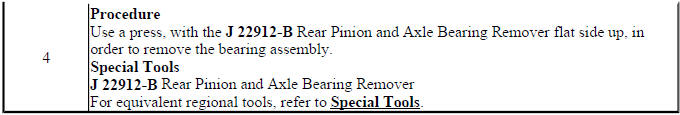

Intermediate Drive Shaft Disassembly

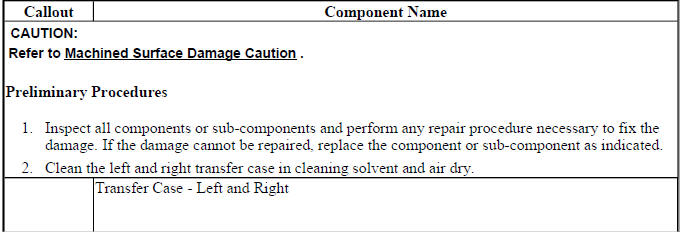

TRANSFER CASE CLEANING AND INSPECTION

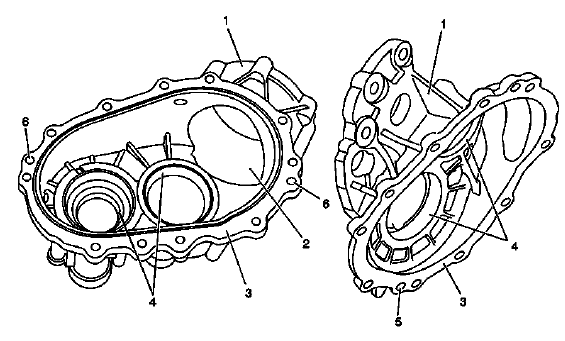

Fig. 33: Identifying Transfer Case Components

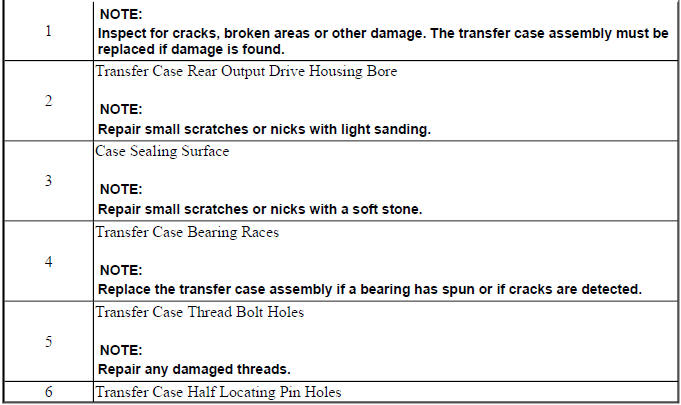

Transfer Case Cleaning and Inspection
REAR OUTPUT DRIVE HOUSING CLEANING AND INSPECTION
Fig. 34: Exploded View Of Rear Output Drive Housing

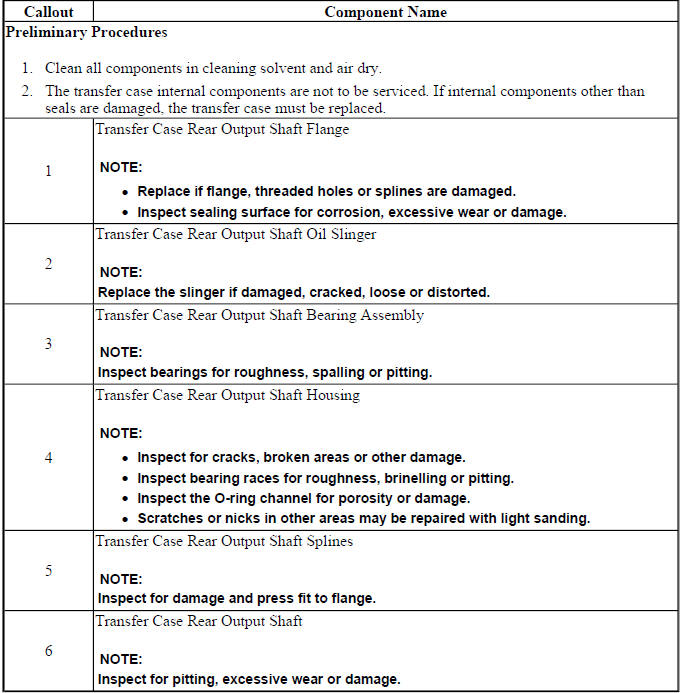

Rear Output Drive Housing Cleaning and Inspection

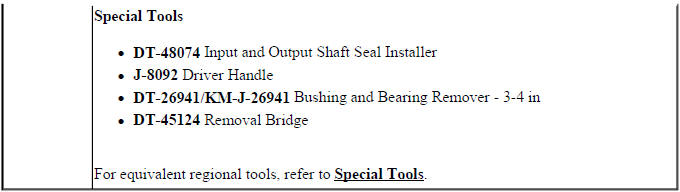

INPUT SHAFT SEAL REPLACEMENT - RIGHT

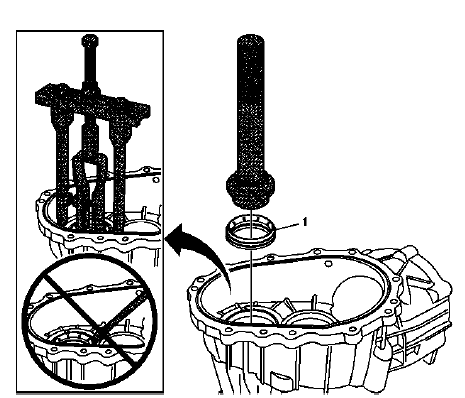

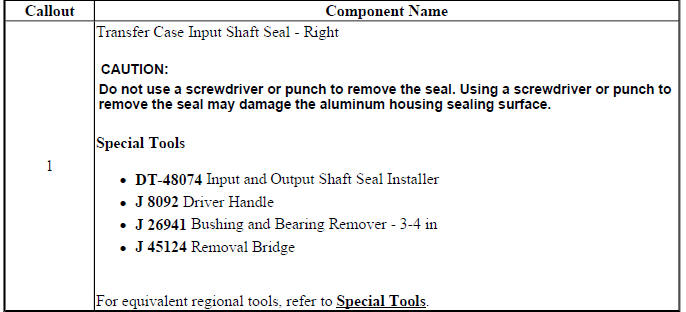

Fig. 35: Identifying Input Shaft Seal - Right
Input Shaft Seal Replacement - Right

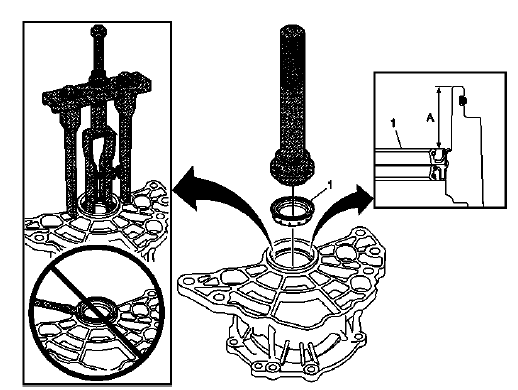

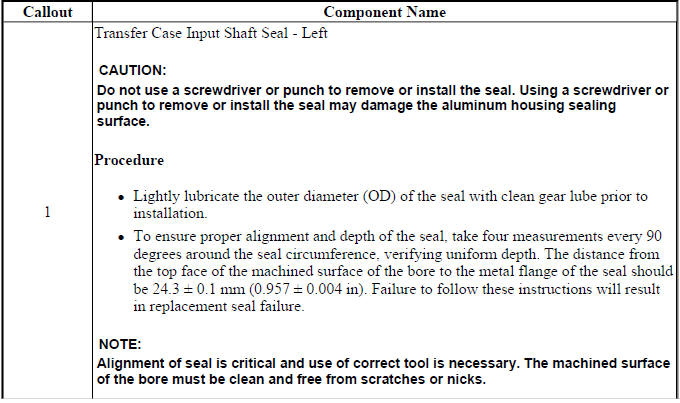

INPUT SHAFT SEAL REPLACEMENT - LEFT
Fig. 36: Identifying Input Shaft Seal - Left
Input Shaft Seal Replacement - Left

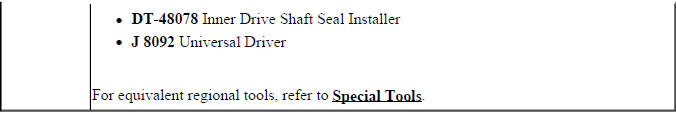

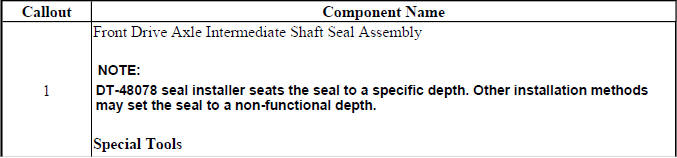

FRONT DRIVE AXLE INNER SHAFT SEAL REPLACEMENT

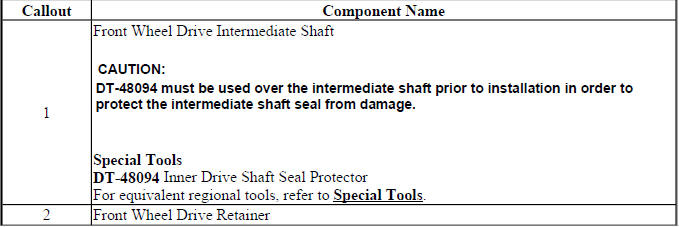

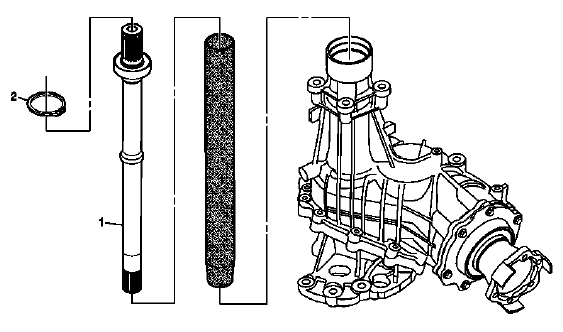

Fig. 37: Locating Front Drive Axle Inner Shaft Seal
Front Drive Axle Inner Shaft Seal Replacement

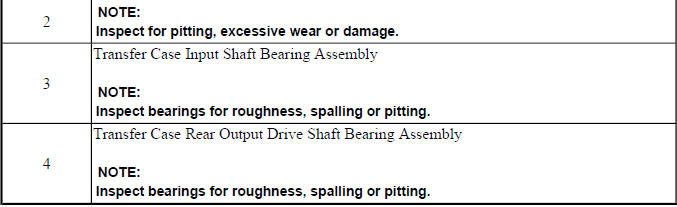

INPUT SHAFT AND REAR OUTPUT DRIVE SHAFT CLEANING AND INSPECTION

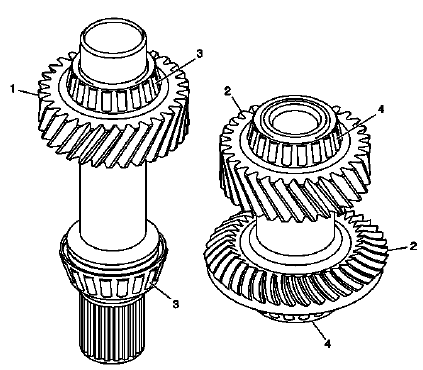

Fig. 38: Identifying Input Shaft & Rear Output Drive Shaft Components

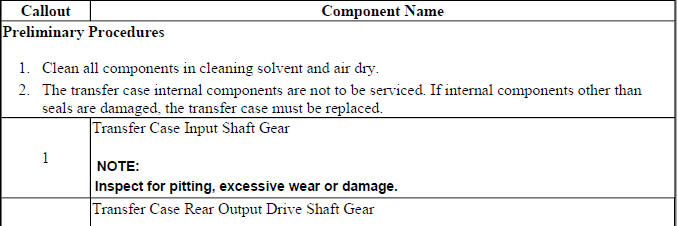

Input Shaft and Rear Output Drive Shaft Cleaning and Inspection
TRANSFER CASE ASSEMBLE

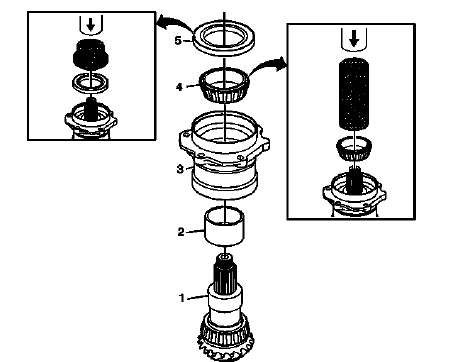

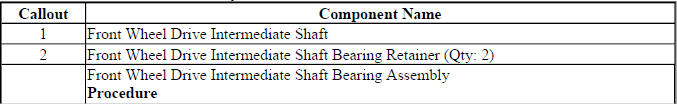

Intermediate Drive Shaft Assembly

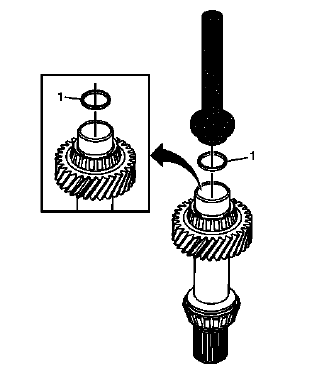

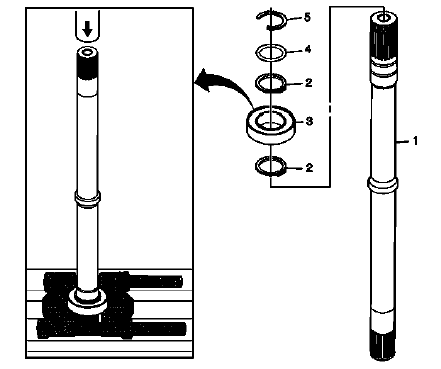

Fig. 39: View Of Intermediate Drive Shaft Components

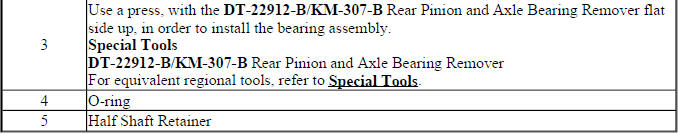

Intermediate Drive Shaft Assembly

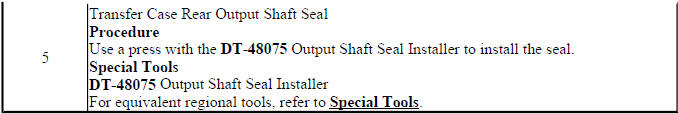

Rear Output Shaft Housing Assembly
Fig. 40: Identifying Rear Output Shaft Housing Components

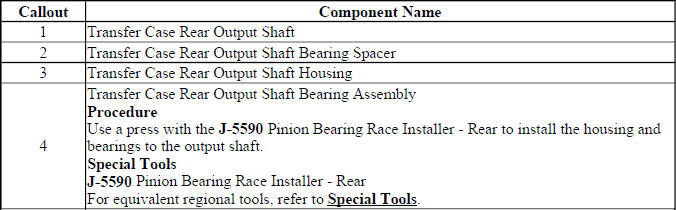

Rear Output Shaft Housing Assembly

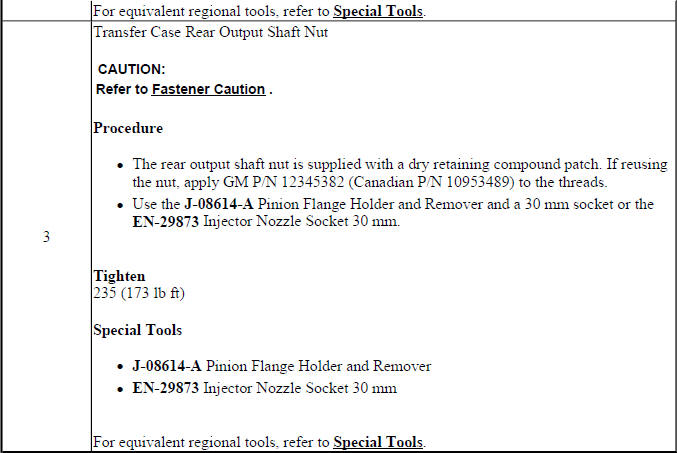

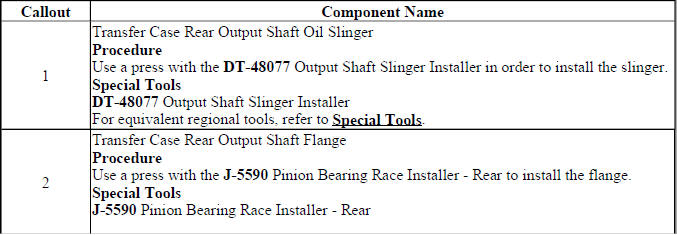

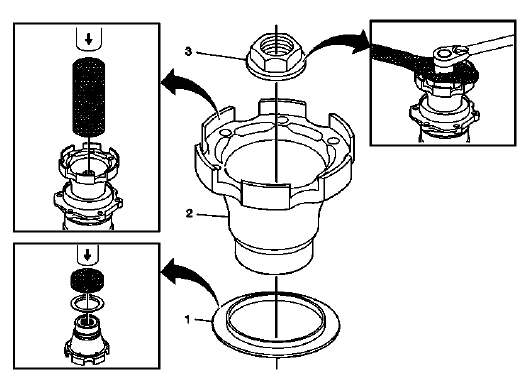

Output Flange Installation
Fig. 41: Exploded View Of Output Flange Components
Output Flange Installation

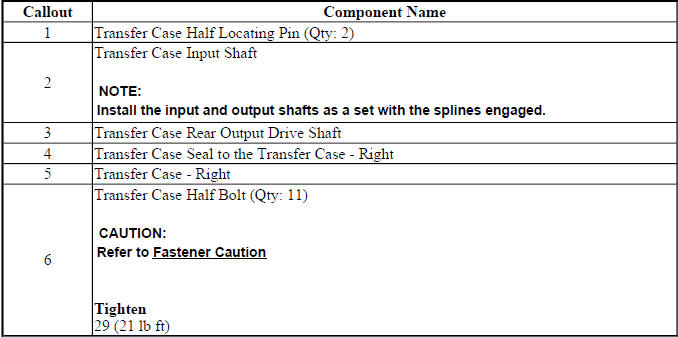

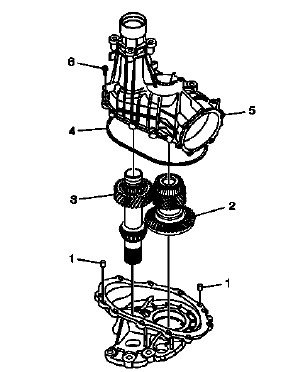

Right Transfer Case, Input Shaft and Output Drive Shaft Installation
Fig. 42: View Of Right Transfer Case, Input Shaft & Output Drive Shaft
Right Transfer Case, Input Shaft and Output Drive Shaft Installation
Rear Output Shaft Housing Installation
Fig. 43: Identifying Rear Output Shaft Housing

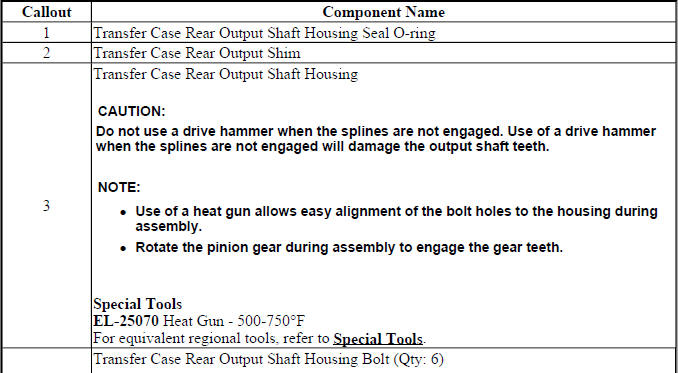

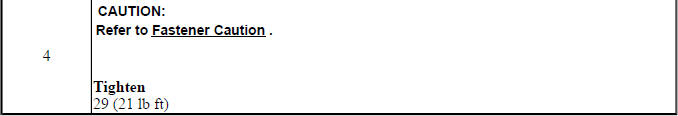

Rear Output Shaft Housing Installation
Intermediate Drive Shaft Installation
Fig. 44: View Of Intermediate Drive Shaft
Intermediate Drive Shaft Installation
Housing O-Ring, Vent Assembly, Drain and Fill Plug Installation
Fig. 45: View Of Transfer Case Housing O-Ring, Vent Assembly, Drain & Fill
Plugs
Housing O-ring, Vent Assembly, Drain and Fill Plug Installation
